Electroencephalogram (EEG)

EEG Usage Instructions​

  1. CURRY9 EEG hardware connection

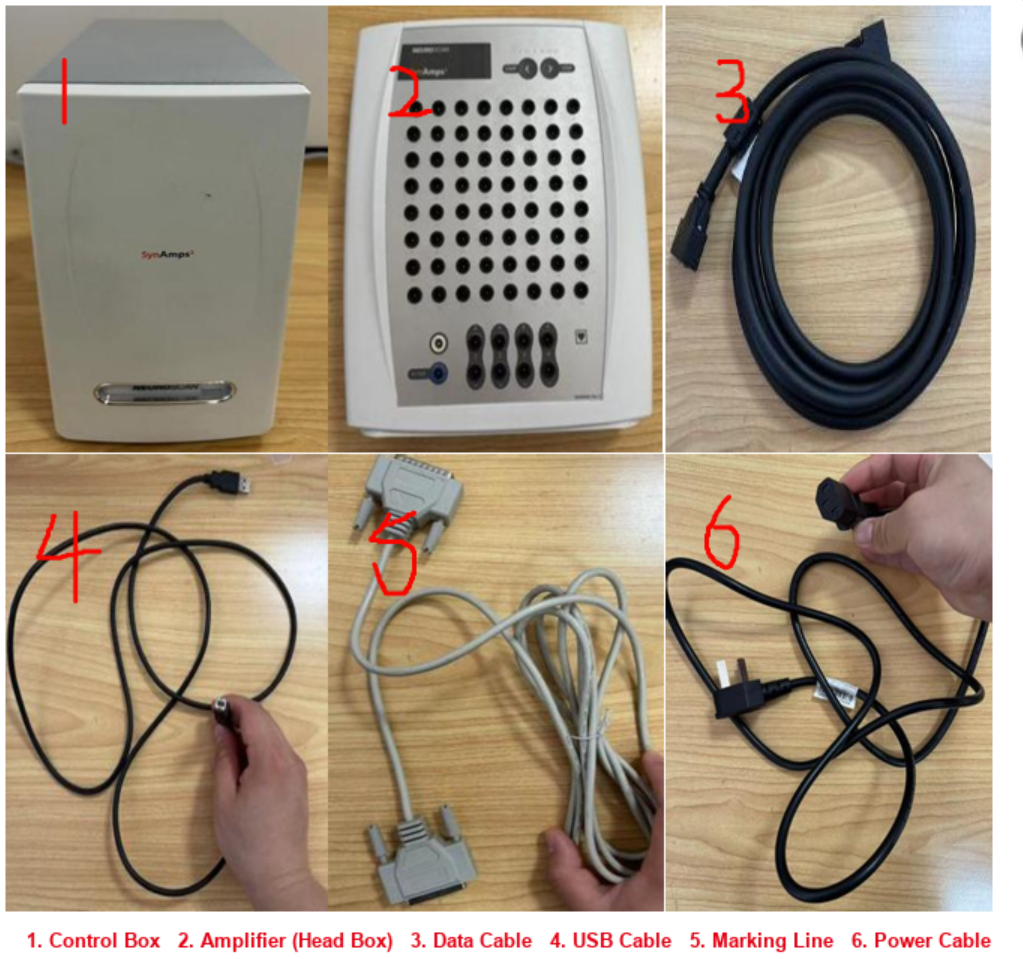

  1. Use the data cable to connect the amplifier to the control box;
  2. Plug in the USB cable and the power cable;
  3. Use the marking cable to connect the control box to the BIN module;
  4. Connect one end of the BNC adapter cable to the BIN module, and the other end to the 5V 1/2 ports of the sync box;

(2) CURRY9 EEG software installation

  1. Double-click Curry903Setup.exe to run the software installer;
    1. Click Next;
    2. Click I Agree;

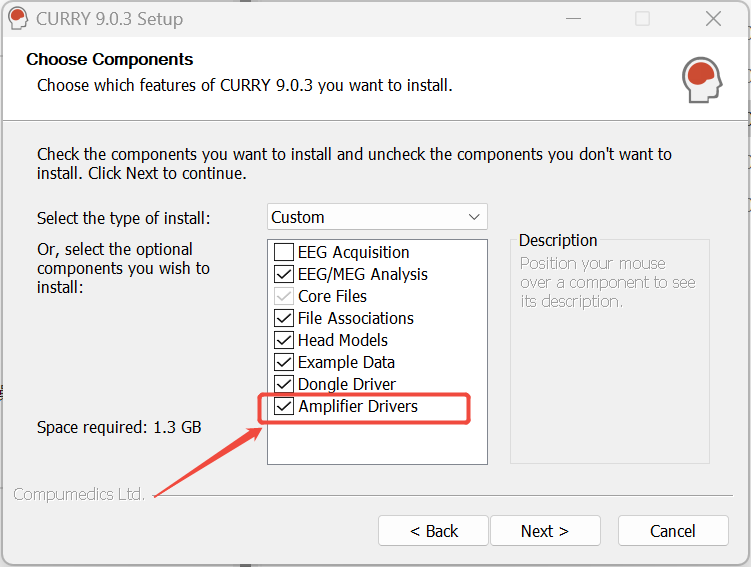

    3. Check the option to install the amplifier driver;
  1. Keep the default installation path and click Install;

(3) Amplifier parameter settings

  1. After the device is powered on, plug in the dongle and the USB cable;
  2. Open the software and select CreateAmplifierConfigurations;
  3. Under Amplifier, select the amplifier type SynAmps2/RT;

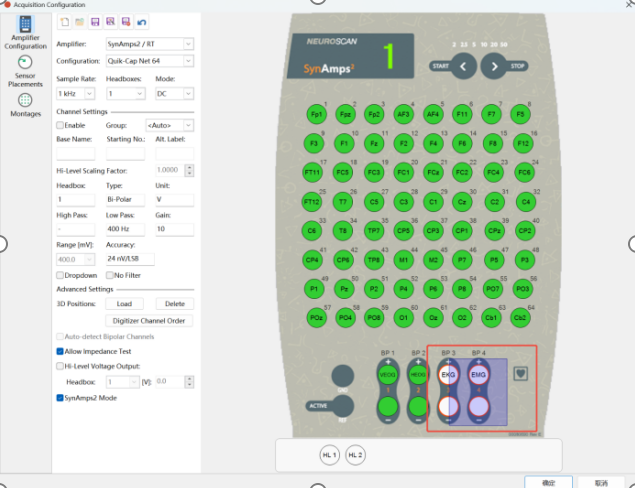

  4. Under Configuration, select the configuration file Quik-Cap64, press and hold the left mouse button to drag and select 'EKG', then click 'OK';
  1. Click Start an Acquisition, under Amplifier select the amplifier type SynAmps2/RT, and under Configuration select the configuration file Quik-Cap64;

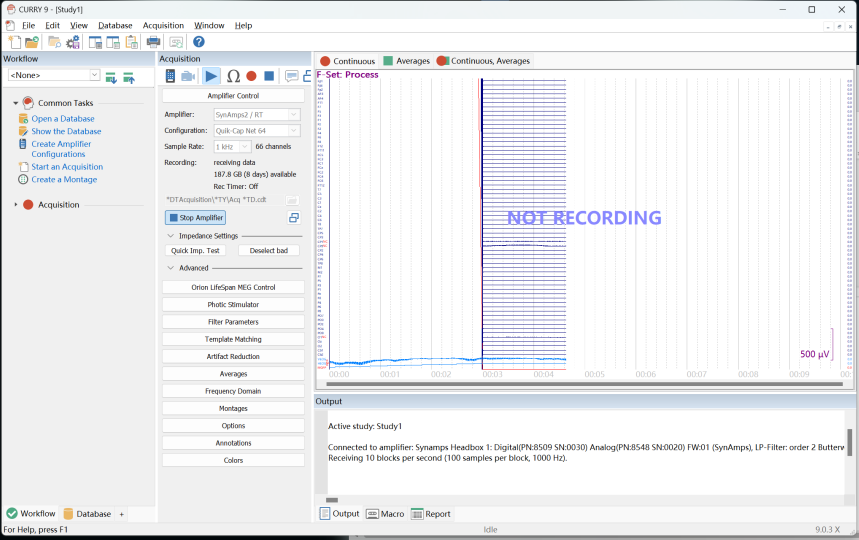

  2. Click Start Amplifier to start playback;

(4) Synchronized recording of the software and EEG

  1. Connect the sync box to the switch where the cameras are located (the sync box needs to be flashed with specific firmware before it can synchronize with the EEG device);
  2. Open the software and connect the cameras;

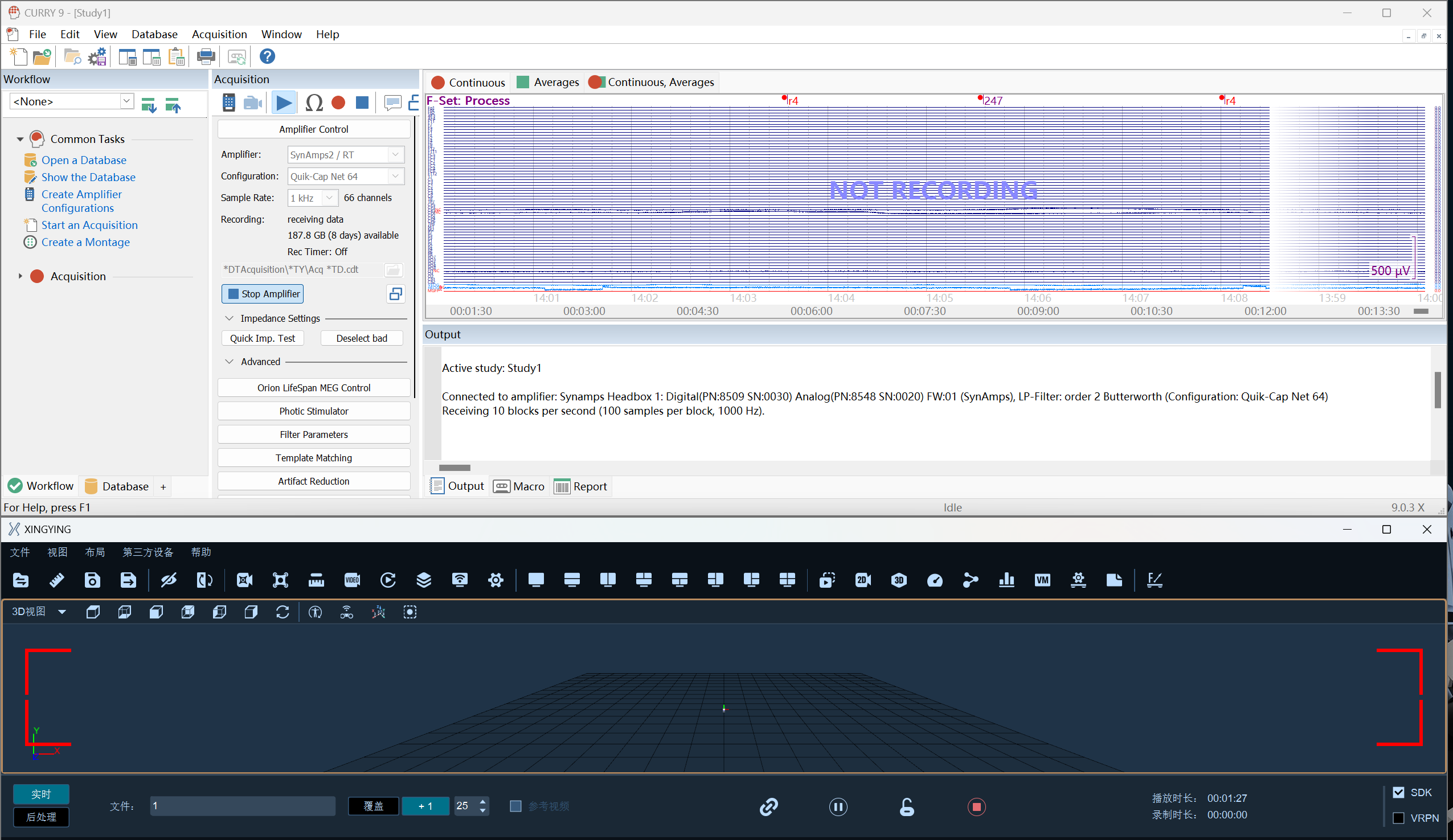

  3. Click Settings, select Sync Box Settings, scroll down to Recording Channels, and check the two 5V 1/2 channels;
  4. Play in the software, enter the file name, and click Record;
