3. Zoning Calibration

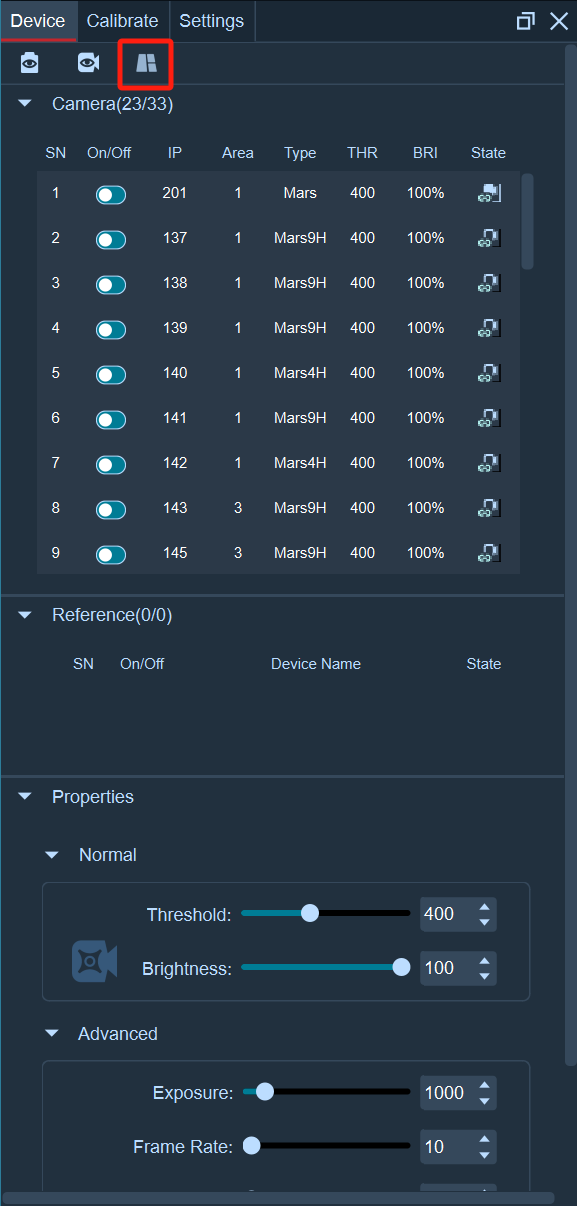

  1. The device list now includes a "Area Setting" menu, allowing users to divide the connected cameras into different areas.（5.3.1）；

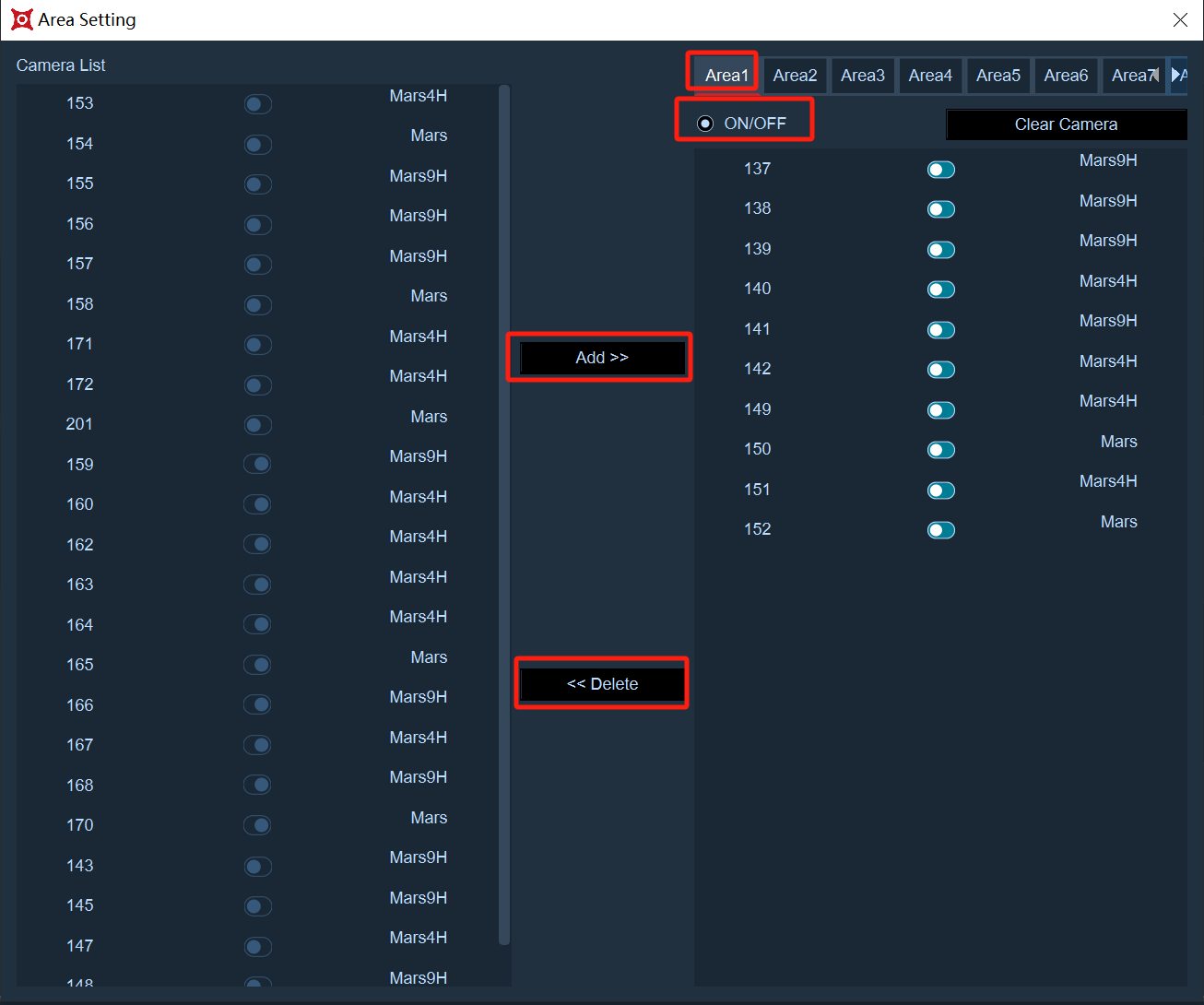

  1. Based on the actual layout of the site, add cameras to different areas (5.3.2).
  2. Perform L+T calibration by area. When calibrating Area 1, enable only the cameras for Area 1 and disable the cameras for other areas. After completing the calibration, save the calibration file as setup-area1.cal.
  3. Repeat the above steps to calibrate all zones in sequence, saving the calibration files for each zone to be used in the next step when merging calibrations.

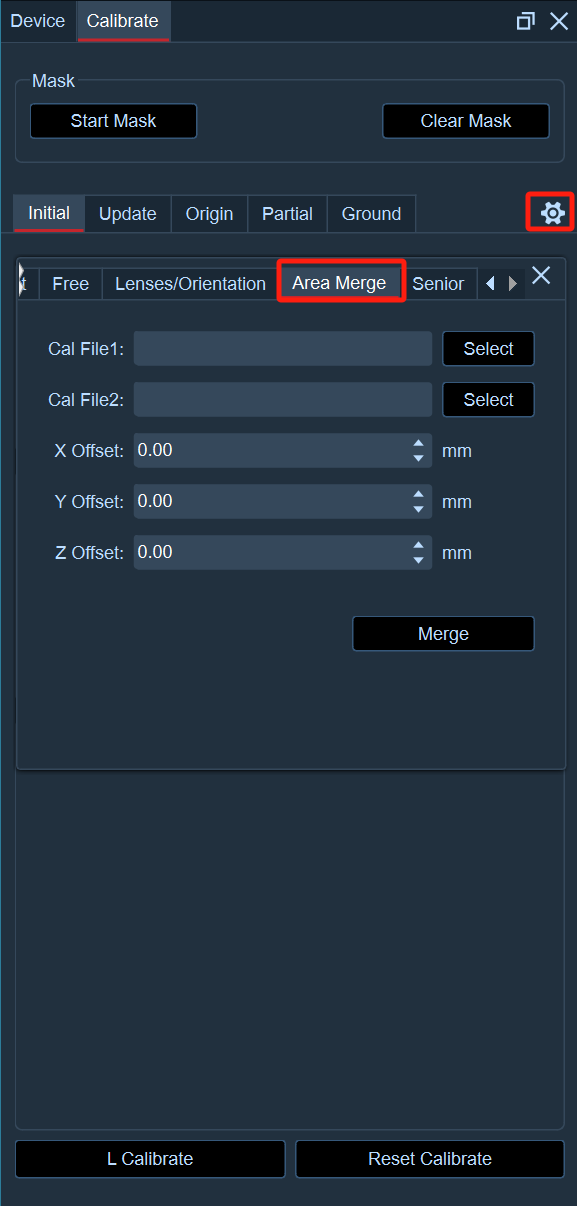

  4. Once all areas have been calibrated, open the Calibration-Settings-Area Merge page (5.3.3). Select the calibration files for Area 1 and Area 2, set the parameters for XYZ offset, and click Merge.
  1. Update the calibration for the merged site. Once the updated calibration is complete, capturing can proceed normally.
  2. If there are three or more areas, first complete the merging of Area 1 and Area 2. Then, treat the merged area as Area 1 and merge it with Area 3. Proceed in this manner until all areas have been merged.
tip

Method for Measuring XYZ Offset:

  1. Designate Area 1 as the main site and Area 2 as the site to be merged.
  2. Measure the coordinate offset:
  3. Use the L-shaped rod of Area 1 as the origin of the coordinate axis and measure the distance between the L-shaped rod of Area 2 and the L-shaped rod of Area 1.
