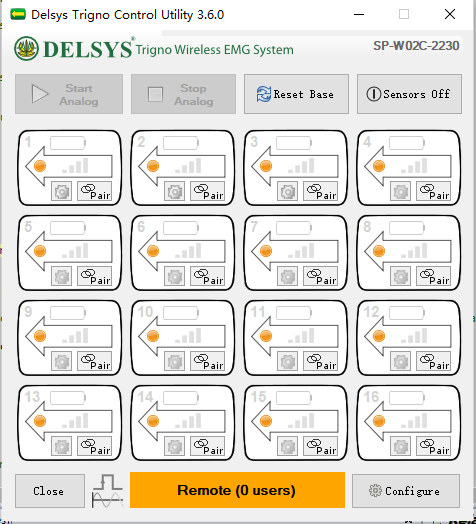

  1. After emgworks installation, open the delsys trigno control Uitlity tool as shown below.
  1. Pairing the EMG wireless module with the trigno host, delsys trigno control Uitlity will display the successfully paired wireless terminal modules after the pairing. (Note that please ensure that the wireless terminals have been paired before using delsys in xingying, xingying does not support pairing of wireless terminals in use).

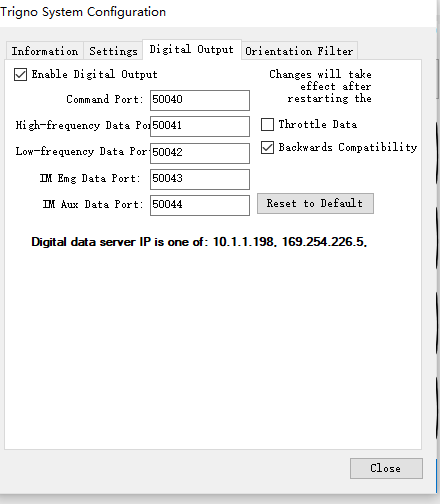

  2. Click the configure button to open the configuration panel.Select the Digital Output field. Make sure Enable Digital Output is checked the first time you use it. Command Port and High-frequency Data Port do not change them unless necessary. When the XingYing system environment is correctly configured, Digital at the bottom of the Digital Output field The data server ip address displays that 10.1.1.198 has been bound. If not, check that the network card of the current computer is correctly set. The above configuration needs to be configured for the first time, and it is only necessary to open the delsys trigno control Uitlity software during use.

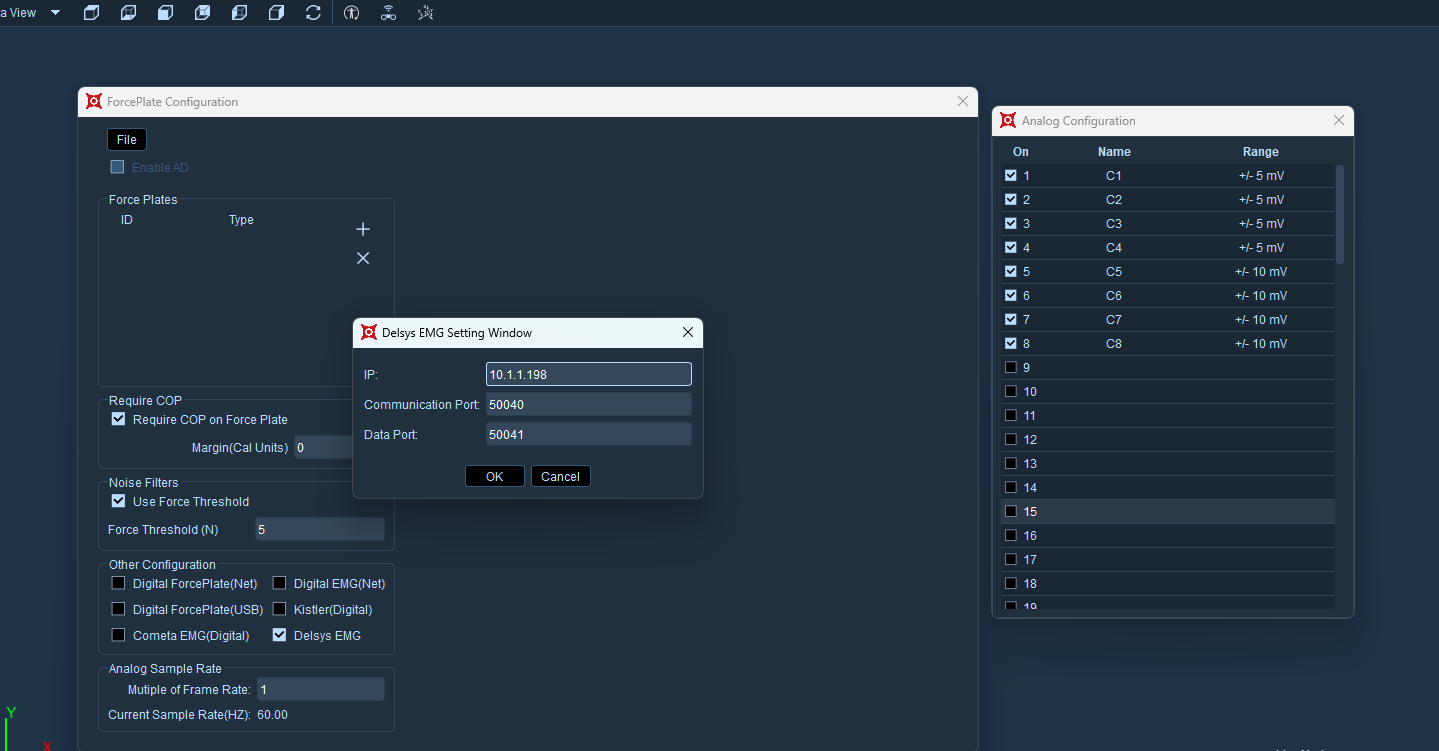

  1. Open the software, select the third-party device, select the analog channel, and correctly configure the required EMG channel and measuring range. The recommended measuring range of Delsys is 5mv or 10mv.
  2. Select the third device again, select the force measuring table, and check delsys electromyography in the other configuration column. Then connect the lens, play, you can use delsys myoelectric normally.
  1. Delsys currently supports independent use, but also supports simultaneous use with Bertec, AMTI, kistler and other digital force gauges. When it is necessary to use both the force measuring table and the EMG device, note that the digital force measuring table does not need to select the analog channel, only the EMG channel needs to be configured.
