To configure the gloves, you need to first connect the gloves in the software provided by the third-party glove

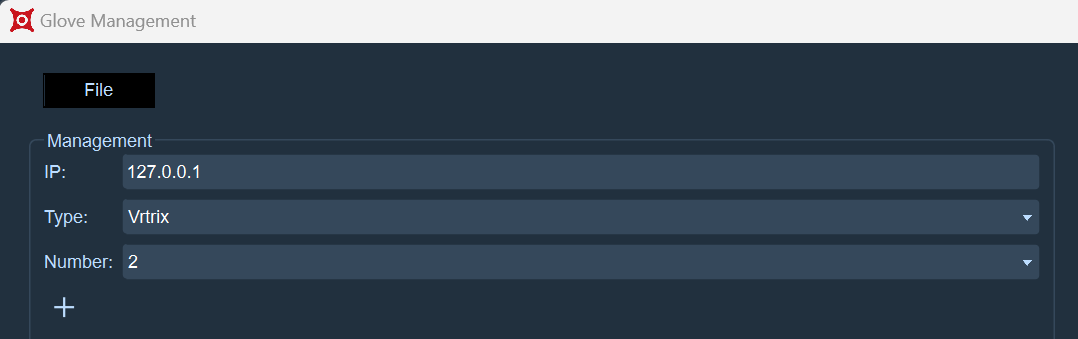

manufacturer. In the XINGYING glove management window, the default address for glove management is "127.0.0.1,"
and it does not need to be modified.
In the "Type" dropdown list, select the appropriate type based on the brand of the connected third-party gloves,
such as "Manus, Vrtrix, Diver-X."
For example, if you select the Vrtrix glove type, you can input the quantity of gloves in the number input box
below.

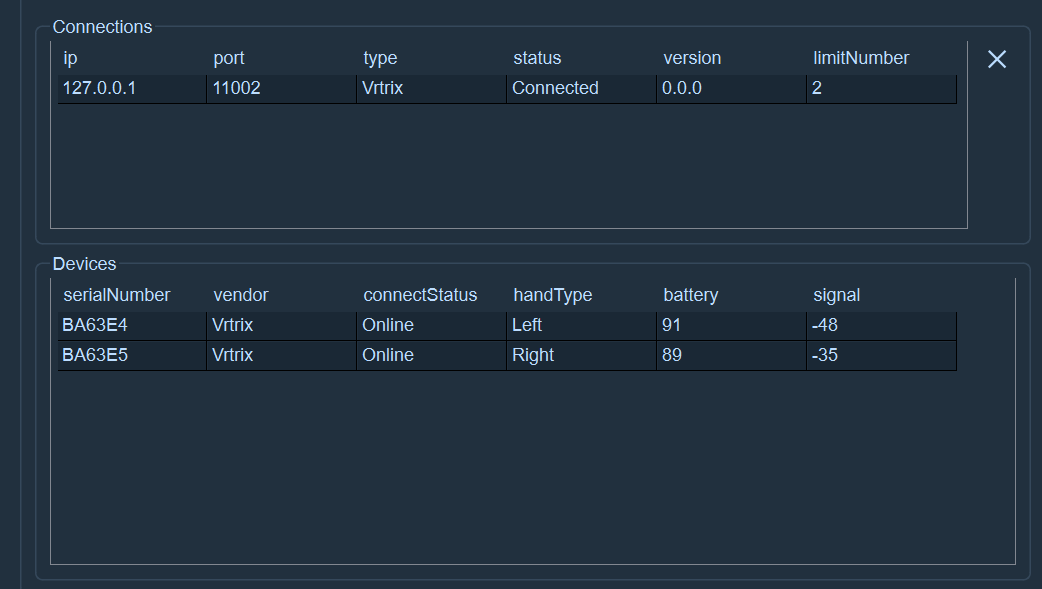

Connection Queue and Device List(16.4.2):
Click the "+" to add a glove connection. The connection queue will display details of the connected gloves such
as "Network Address, Port, Type, Status, Version, Quantity Limit." The device queue below will show details for
the left and right gloves, including "Serial Number, Brand, Connection Status, Hand Type, Battery Level, Signal
Strength."
Select a connection in the queue and click the "X" on the right side to delete that connection.
If the selected brand of gloves is not powered on or not properly connected, the connection queue and device list
will not immediately display the status and parameters of the gloves after adding a glove connection.
The device list will display real-time battery levels and signal strength for the left and right gloves. If the
gloves disconnect, the connection status will change to offline.

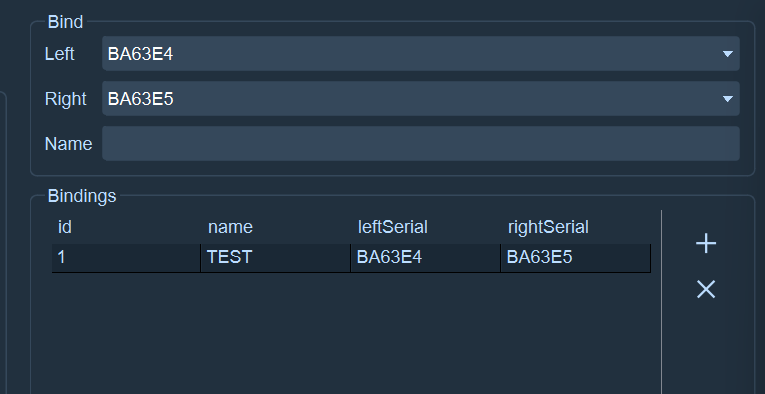

Glove Binding(16.4.3):
In the binding module on the right side of the window, select the corresponding serial numbers for the left and
right gloves. The serial numbers for the left and right gloves can be viewed in the "Serial Number" column of the
device queue. If multiple pairs of gloves are connected, be careful to distinguish the serial numbers when binding
the left and right gloves.
Binding Set(16.4.3):
In the binding module, enter a custom name, then click the "+" on the right side to add a binding set for the
gloves. Each binding set will display the "ID, Name, Left Hand Serial Number, and Right Hand Serial Number" of the
current set of gloves. When adding multiple sets of gloves, the IDs are arranged in sequence.
Select a binding set and click the "X" on the right side to delete that binding set.
When adding binding sets for multiple pairs of gloves, be careful to distinguish the names and ensure that the
serial numbers for the left and right gloves are correctly bound.

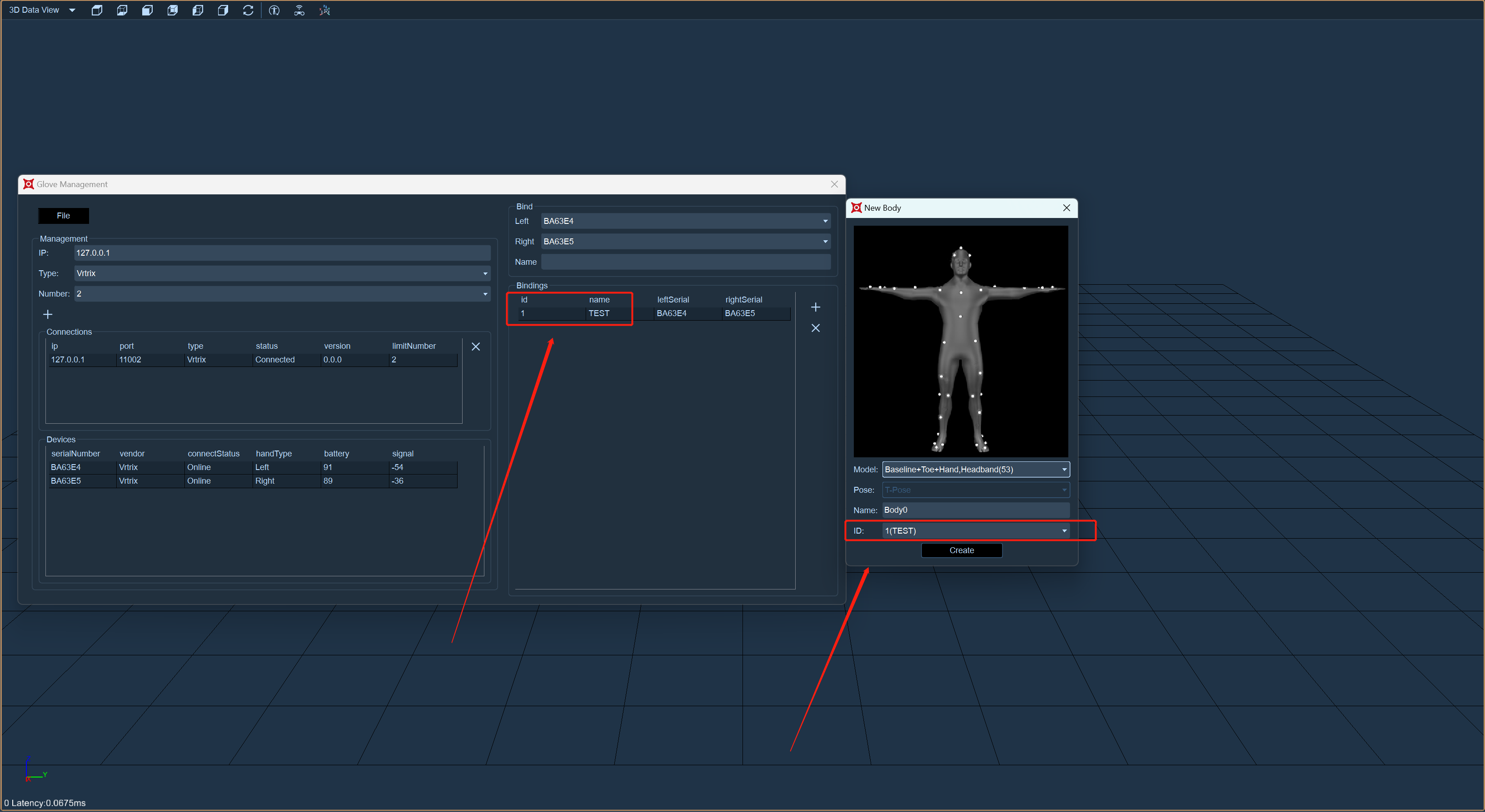

Creating Baseline+Toe+Hand, Headband(53)(16.4.4):
After configuring the gloves in the Glove Management interface, create a human model with gloves in the real-time
mode. In the human creation window, select the "Baseline+Toe+Hand, Headband(53)" human type. Below the human type
dropdown list, select the glove binding set from another dropdown list, formatted as "Binding Set ID (Name)".
When creating a human model with gloves, make sure to select the correct binding set from the ID list. This helps
avoid the confusion of finger bones after successfully creating the human model, especially when multiple human
models are involved and the wrong binding set is selected.
After configuring the gloves, you can click "File -- Export Glove Configuration File" in the top left corner of the
Glove Management interface to export the glove configuration. The file will have a ".json" extension. To import a
glove configuration file, click on Import Glove Configuration File, select the glove configuration file with the "
.json" extension, and the Glove Management interface will display the recorded configuration on the screen,
eliminating the need for manual configuration.
