Camera Configuration

Device initialization mechanism

  1. The digital tube of the plug-and-play camera will display 000 after power-on (device initialization status code). After launching the software, an IP address will be assigned automatically. IP addresses are allocated sequentially starting from 201. If a calibration file exists, allocation starts from the last device serial number in the calibration record plus one.

Device Discovery and Device Status

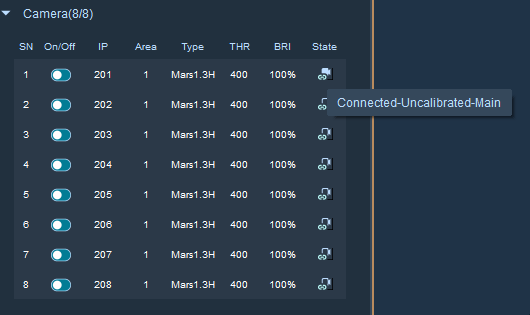

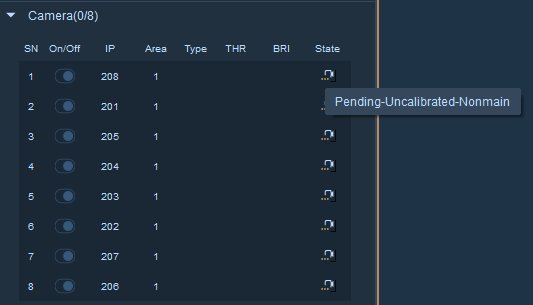

  1. After opening the software, the device list will display the IP of the device to be connected. After connecting the camera, hover the mouse over the device status bar to view detailed information.
  • Main camera: used for synchronous signal output.
  • camera: calibrated/uncalibrated
  • Connection status: Connected / Frame loss / Offline
image (323)
image (322)

IP address modification function

  1. Operation method: After soft-pausing video playback, in the device management interface, right-click on the target device → select [Edit IP], double-click the device IP field to enter manual modification mode and enter an IP address that conforms to the specification.
warning

Save requirements: After modification, [Save Calibration File] must be executed; otherwise, the IP will revert to the initial value after restarting.

Main camera setting

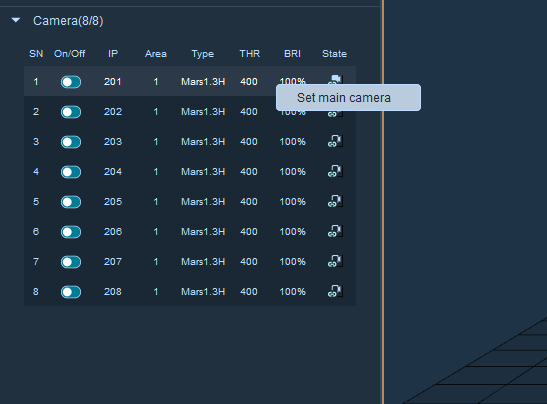

  1. Operation method: Pause the software playback, right-click on the connected device, and select [Set as main camera]. The system will automatically update the main camera identifier and synchronize the signal source.
image (324)
