6. Cameras Configuration

Device initialization mechanism

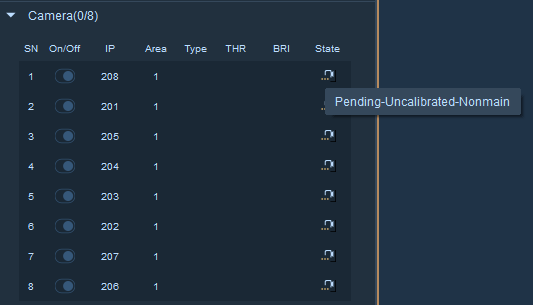

  1. The digital tube of the plug-and-play lens will display 000 after being powered on (device initialization status code). After opening the software, an IP address will be automatically assigned. The IP addresses are sequentially assigned starting from 201. If there is a calibration file, the assignment will start with last device serial number in the calibration record plus 1.

Device Discovery and Device Status

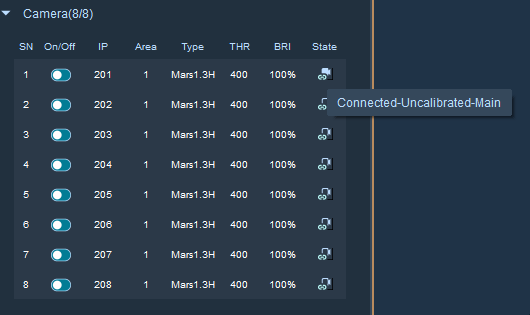

  1. After opening the software, the device list will display the IP of the device to be connected. After connecting the lens, hover the mouse over the device status bar to view detailed information.
  • Main camera: used for synchronous signal output.
  • Lens: calibrated/uncalibrated
  • Connection status: Connected / Frame loss / Offline

IP address modification function

  1. Operation method: After soft-pausing video playback, in the device management interface, right-click on the target device → select [Edit IP], double-click the device IP field to enter manual modification mode and enter an IP address that conforms to the specification.
tip

Save requirements: After modification, [Save Calibration File] must be executed; otherwise, the IP will revert to the initial value after restarting.

Main camera setting

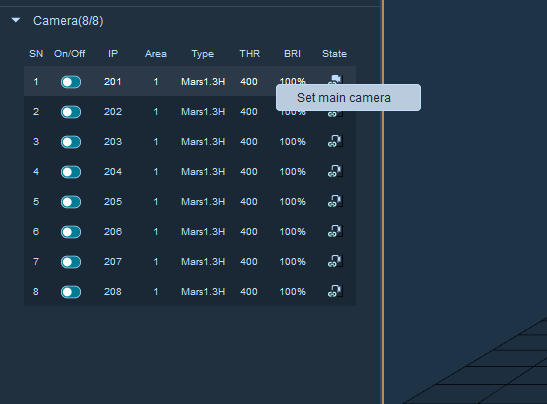

  1. Operation method: Pause the software playback, right-click on the connected device, and select [Set as main camera]. The system will automatically update the main camera identifier and synchronize the signal source.
