2. Remote Trigger

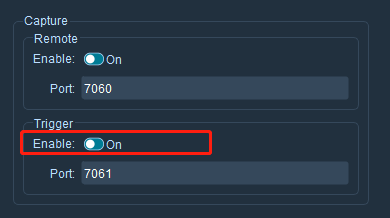

- Enable the switch in the "Capture-Trigger" section of the data broadcast panel to activate the remote trigger function. The port is the broadcast port where XINGYING sends control commands, with a default value of 7061. If the port monitored by third-party software or tools is different, please assign the correct port to XINGYING. If you need to change this port, please disable the remote triggering function first, then re-enable it after the modifications are complete.
- After enabling remote triggering, a camera needs to be connected. Once the connection is established, recording can be triggered by turning it on or off.
- Currently, the trigger control command sent by XINGYING is in XML file format:
- Start trigger
- Stop trigger
.png)
Start trigger
- The following example shows the start trigger. Note that the broadcast must be suitable for a UDP packet.
- The indentation in the following example is for clarity; the actual packet is not indented. The blank spaces between the tags have been removed.
<?xml version="1.0" encoding="UTF-8" standalone="no" ?>
<CaptureStart>
<Name VALUE="RemoteTriggerTest_take0116` />
<Database Path VALUE="F:\20230712\test1" />
<Notes VALUE="This is Beijing NOKOV Science & Technology Co., Ltd Motion Capture Start Msg" />
<Description VALUE="NULL" />
<Delay VALUE="33" />
<PacketID VALUE=`10028" />
</CaptureStart>
Field Definitions:
| Value | Description |
|---|---|
| Name | Filename of recorded file |
| SessionName | Reserved field |
| Notes | Reserved field |
| Description | Reserved field |
| Delay | Reserved field |
| Database Path | File path of recorded file |
| PacketID | Reserved field |
Stop trigger
- The following example shows the stop trigger. Note that the broadcast must be suitable for a UDP packet.
- The indentation in the following example is for clarity; the actual packet is not indented. The blank spaces between the tags have been removed.
<?xml version="1.0" encoding="UTF-8" standalone="no" ?>
<CaptureStop RESULT="SUCCESS">
<Name VALUE="RemoteTriggerTest_take0114` />
<Database Path VALUE="F:\20230712\test1" />
<Notes VALUE="This is Beijing NOKOV Science & Technology Co., Ltd Motion Capture Stop Msg" />
<Description VALUE="NULL" />
<Delay VALUE="33" />
<PacketID VALUE=`10025" />
</CaptureStop>
Field Definitions:
| Value | Description |
|---|---|
| Name | Filename of recorded file |
| SessionName | Reserved field |
| Notes | Reserved field |
| Description | Reserved field |
| Delay | Reserved field |
| Database Path | File path of recorded file |
| PacketID | Reserved field |
