After completing the configuration work of the force platform hardware, connect the network cable to the switch.

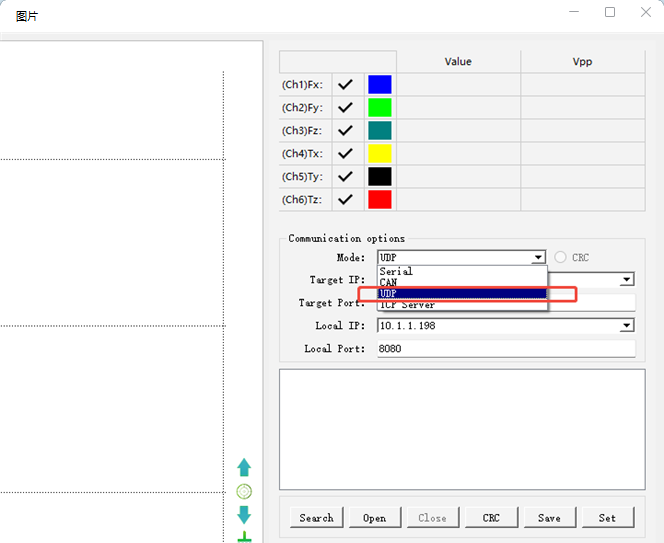

Then, open the RSD tool and change the communication mode to UDP. Click the "search" button and wait for a while, and
the IP address and port number of the force platform will be displayed.

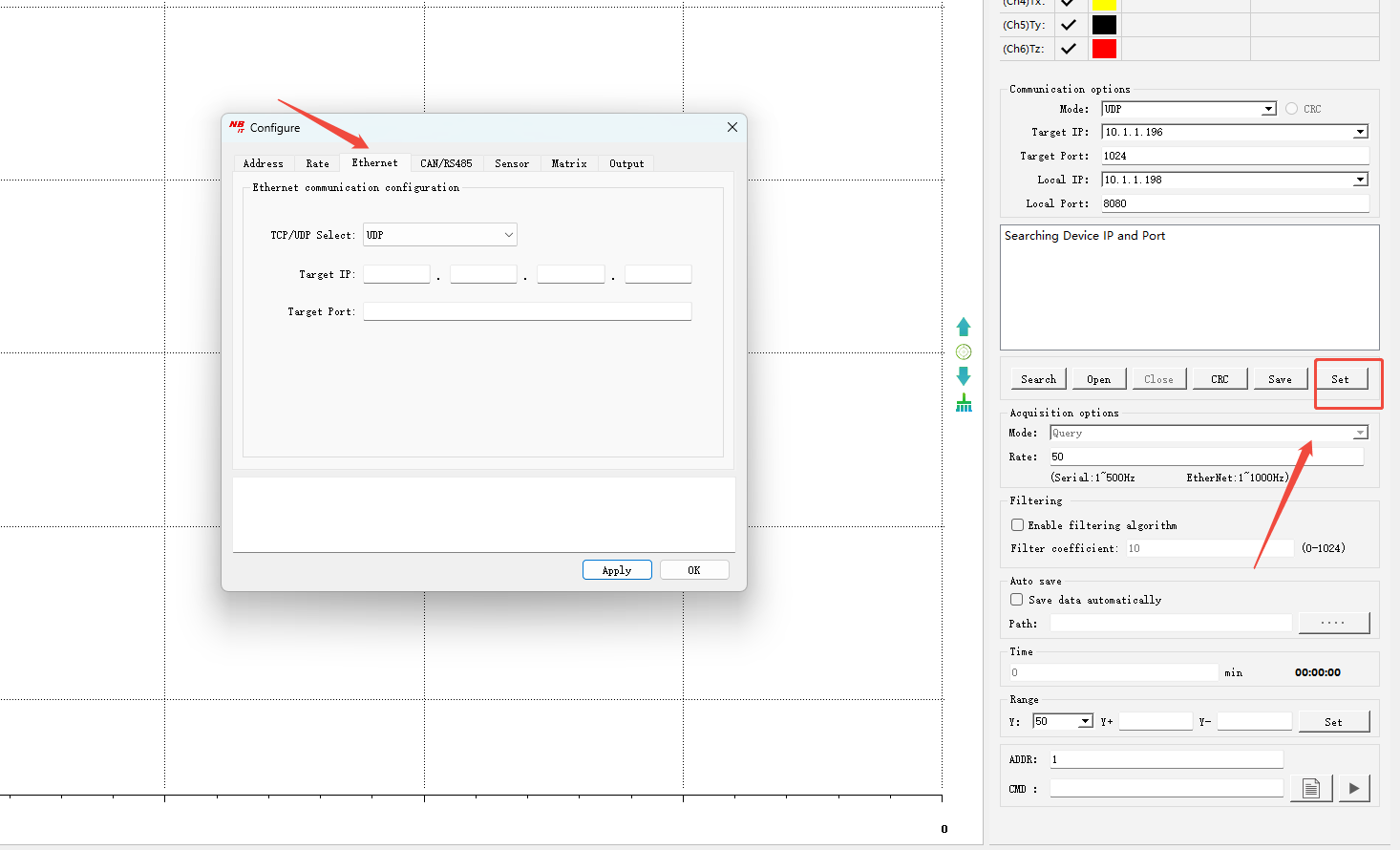

Click "set", select "Ethernet" from the pop-up options, then enter the IP address "10.1.1.196" and the port number "
1024". After entering, click "Apply" to apply the settings, and then close the window.

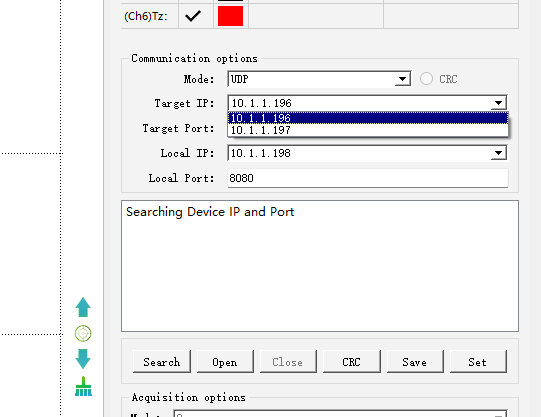

Perform a drop-down operation in the "Target Port" window to switch to another force platform, and then repeat the
above setting steps (note that the IP addresses should not be the same).
After the IP addresses of all force platforms have been set, you can enter the set IP addresses in the command prompt
to test whether they can be pinged. If the communication is normal, you can configure the relevant parameters of the
force platform in the motion capture software.

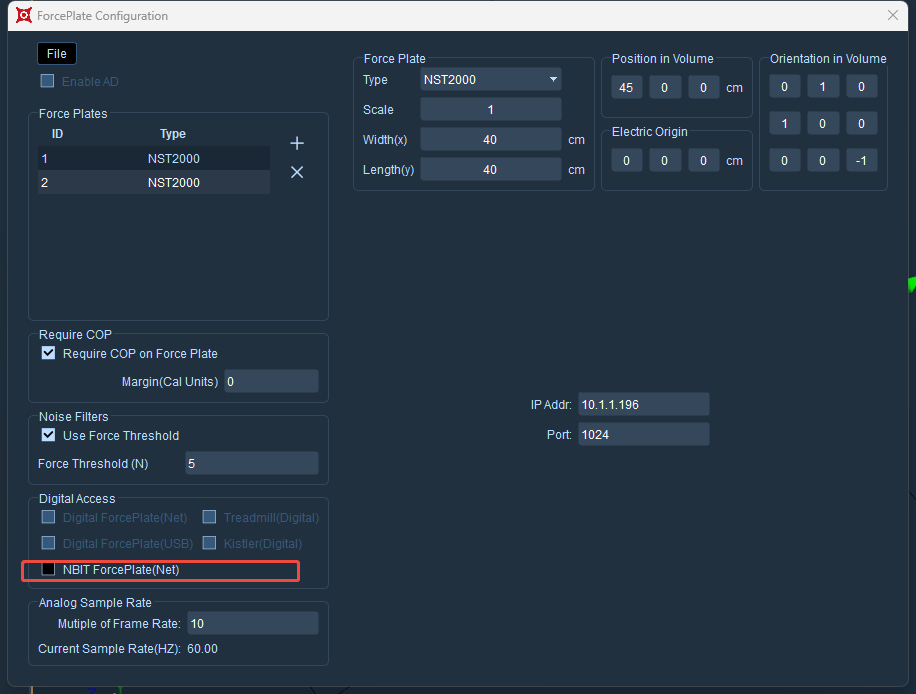

Open the "XINGYING" software, click the "Third-Party Devices" option, and select "Force Platform Parameter
Configuration" from it. Click the "+" sign in the interface to add a force platform, select the newly added force
platform, and switch its type to "NST2000". On the right side of the software interface, start configuring the
various parameters of the force platform.
In the "IP Address" input box, be sure to enter the previously set IP address of the force platform. For example, if
the IP address of the force platform is "10.1.1.197", enter "10.1.1.197" accurately here. At the same time, enter the
corresponding port number "1024". After completing the above operations, in the "Other Configurations" section of the
force platform parameter setting window, check the "NBIT Force Platform (Network)" option.
