Cometa

Install Drivers

• Cometa electromyography receiver box is connected to the computer via USB and requires driver installation.
• Device Manager -> Other devices -> Update driver -> Browse my computer for drivers -> Choose the directory where the driver is located -> Scan for automatic installation.

Device Connection

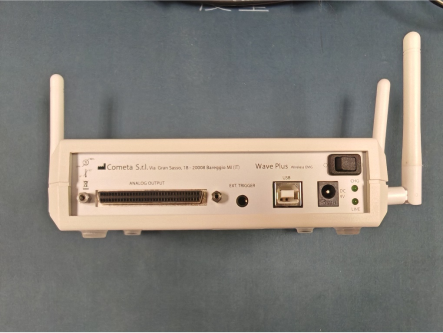

• The receiver box is connected to the PC using a USB cable.

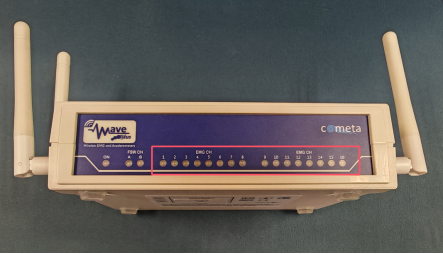

• After powering on, the green light will be lit for normal communication with the signal transmitter. If there is no proper connection, the light will not be lit. A yellow light indicates low transmitter battery.

XINGYING Configuration

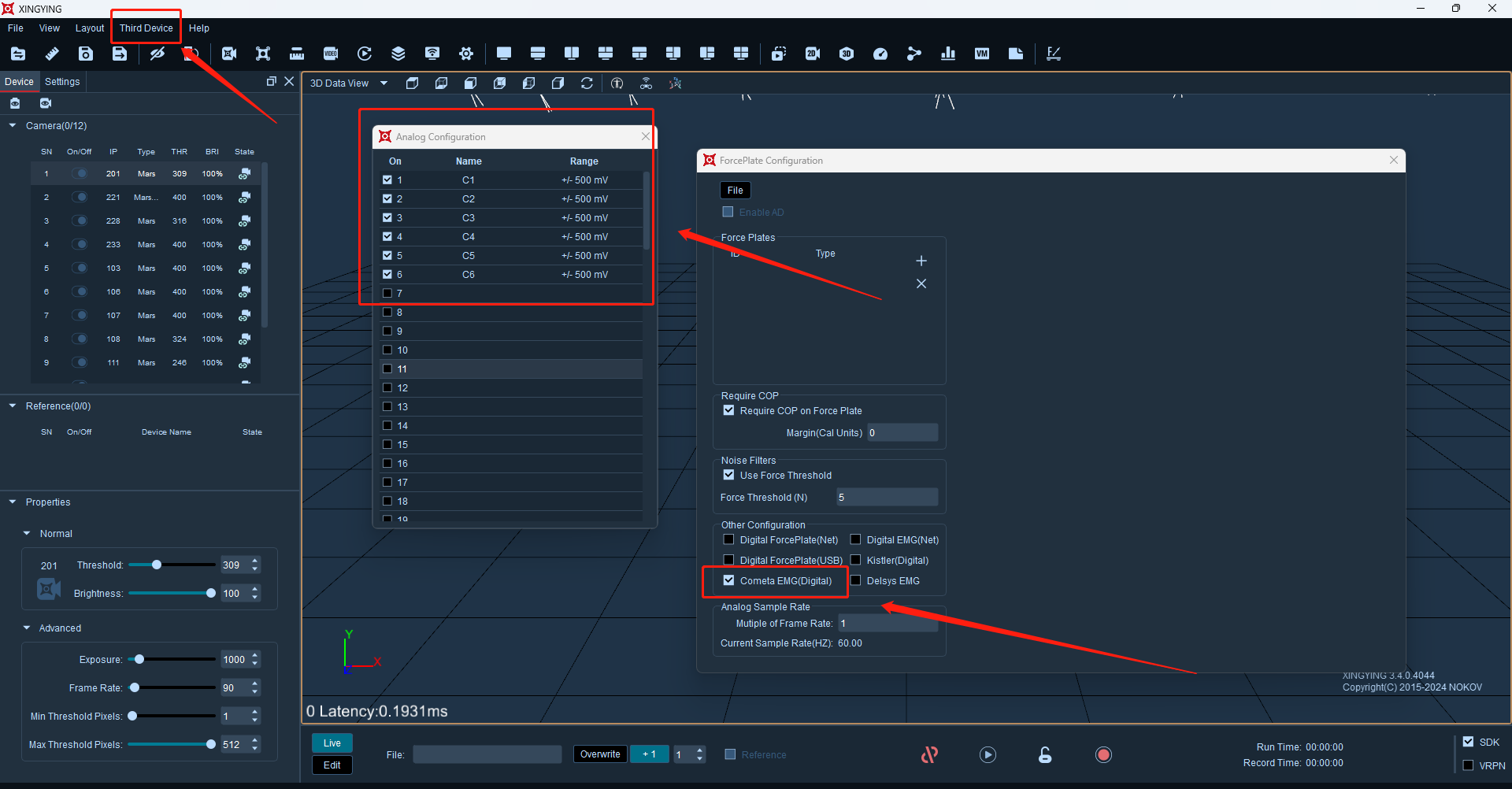

• Open the software, click on third-party devices, then click on channels to configure the electromyography channels with a range of 500mV.
• Next, click on force gauge parameter settings, check Cometa electromyography.

• Connect the lens, click on play, then click on the analog chart on the software, go to the edit page, and enable auto-fit.
