5.Finger Marker Point Instructions

Index	Name	Description
1	WristM	Position of the wrist center
2	WristIn	Inside of the wrist
3	WristOut	Outside of the wrist
4	HandOffset	Hand offset point, differentiate left and right hand
5	FingerThumb1	Between the palm and the first phalanx of the thumb
6	FingerThumb2	Between the first and second phalanx of the thumb
7	FingerThumb3	Between the second and third phalanx of the thumb
8	FingerThumb4	Tip of the thumb
9	FingerIndex1	Between the first phalanx of the index finger and the palm
10	FingerIndex2	Between the first and second phalanx of the index finger
11	FingerIndex3	Between the second and third phalanx of the index finger
12	FingerIndex4	Tip of the index finger
13	FingerMiddle1	Between the first phalanx of the middle finger and the palm
14	FingerMiddle2	Between the first and second phalanx of the middle finger
15	FingerMiddle3	Between the second and third phalanx of the middle finger
16	FingerMiddle4	Tip of the middle finger
17	FingerRing1	Between the first phalanx of the ring finger and the palm
18	FingerRing2	Between the first and second phalanx of the ring finger
19	FingerRing3	Between the second and third phalanx of the ring finger
20	FingerRing4	Tip of the ring finger
21	FingerPinky1	Between the first phalanx of the pinky finger and the palm
22	FingerPinky2	Between the first and second phalanx of the pinky finger
23	FingerPinky3	Between the second and third phalanx of the pinky finger
24	FingerPinky4	Tip of the pinky finger

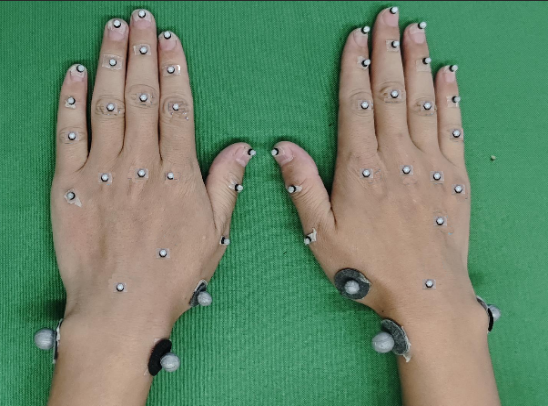

Real Finger Marker Point Diagram

\

Marker Application Instructions

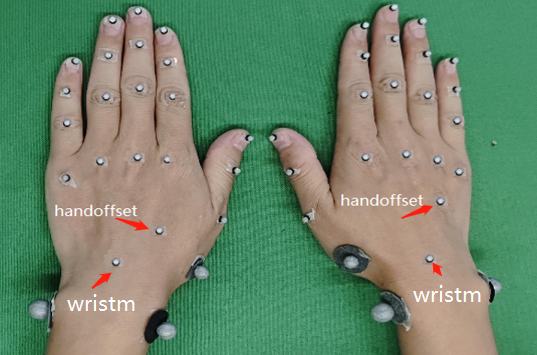

• Please refer to the marker placement diagram in Figure 1 above. Attach reflective markers to various joints of the fingers. Pay particular attention to the marker placement for HandOffset. For the left hand, place it between FingerIndex1 and WristM, just below FingerIndex1. For the right hand, position it between FingerRing1 and WristM, just below FingerRing1.

tip

The marker points on the fingers use 3mm markers.
